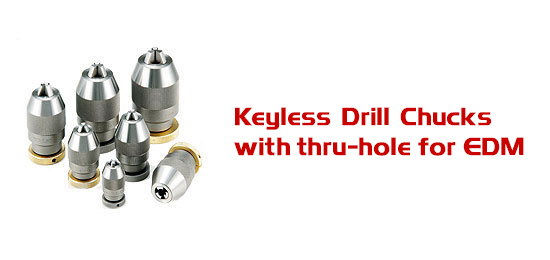

Keyless Drill Chucks with thru-hole for EDM

Keyless Drill Chucks with thru-hole for EDM

  • There are the ones having a thru-hole from the tapered hole to the inside diameter.
  • Since the cutting tools and/or electrodes can be inserted up to the top face of the spindle taper, it is useful for the electric discharge machines.
  • All the parts are precision-made and hardened enough, and, moreover, the outside is totally enclosed type, all of which enduring an outstanding durability of the chuck.
  • The run-out accuracy is less than 0.0020 inch that is equal to Precision Class (Silver). The accuracy is kept for a long time.
Keyless Drill Chucks with thru-hole for EDM

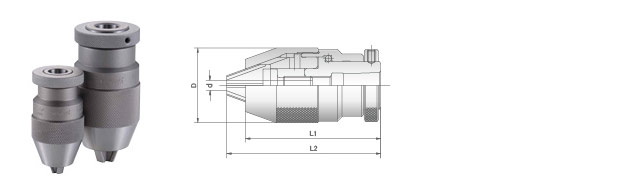

Code No. Model No. Capacity Dimensions (inches) Thru-hole
dia.
d
Jacobs
Taper
Weight
oz.
inches mm D L1 L2
Min. Max. Min. Max.
1301003 LC3H-0JT 0.012 0.118 0.3 3.0 0.94 1.73 1.89 0.126 0JT 3.5
LC3H-1JT  ◆ 0.012 0.118 0.3 3.0 1JT 3.5
1303005 LC6.5H-1JT 0.020 0.256 0.5 6.5 1.34 2.44 2.68 0.157 1JT 10.5
LC8H-2SJT 0.020 0.315 0.5 8.0 1.50 2.70 2.99 0.217 2SJT 13.9
LC10H-2SJT 0.020 0.394 0.5 10 1.69 3.15 3.58 0.236 2SJT 21.5
LC10-2JT 0.020 0.394 0.5 10 2JT 21.5
LC10-33JT 0.020 0.394 0.5 10 33JT 21.5
LC13-2JT 0.020 0.512 0.5 13 1.97 4.06 4.06 0.256 2JT 33.0
LC13-33JT 0.020 0.512 0.5 13 33JT 33.0
LC13H-6JT 0.020 0.512 0.5 13 6JT 33.0
LC16H-6JT 0.118 0.630 0.5 13 2.20 4.29 4.29 0.256 6JT 43.7
* ◆The Taper angle is the same as JT.NO.1, but taper length is shorter than standard JT.NO.1.
  The detail must be inquired to us.
* ◇Production on order.
* Diameters in the above are the maximum thru-hole diameters.
